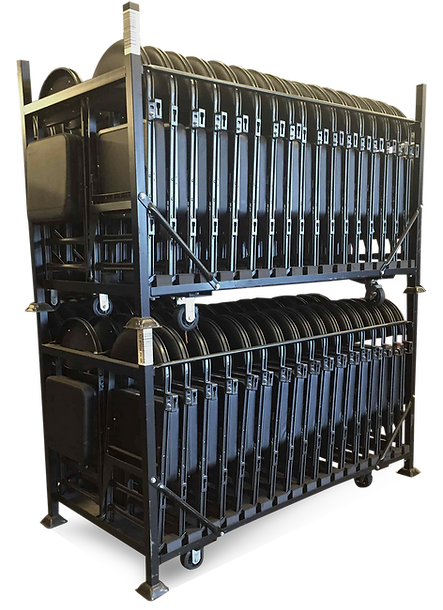

PALLET (STACKING) STORAGE CART

PRODUCT DETAILS

1. The Truck frame inside and outside beds are structural steel angles 3” x 3” x .1875” thick; the end frames are 1.5” x 11 gauge high carbon square tubular steel; the support braces are 1.5” x .1875 flat stock; each end support has stacking support couplings of .125” formed steel. Special forklift pockets and/or tabs included for safety handling.



2. Four welded caster sockets (2” x 2” x .1875” angle) spaced properly with two swivel casters on one end and two rigid casters on the other end - each 6” x 2”. (Each caster loaded capacity 700 lbs.) Please Note: Starter Block base optional – equipped stacking 3 carts high (approximately 12.5’ height).



3. All metal parts are painted black powder coat. Dimensions: approx. 86” (218cm) length, 41”(107cm) width (approx. 44” for wider chairs).



4. For stacking safety and chair alignment a removable metal tube (2) extends from and fits firmly on each upright end support and (1) bolted center support extends between the uprights.



5. Special chair alignment/spacing and to maintain the chairs in an upright position (without leaning over) there are polyurethane leg support pockets (chair indexing) covering the length of the outside base ends and center channels



Approximate chair capacity:

80 – Model#CS100 / ABS600

56 – Model#AS100 / ABS500

44 – Model#DS100/ ABS800

34 – Model#GS100/ ABS700

28 – Model#PS100/ ABS750
